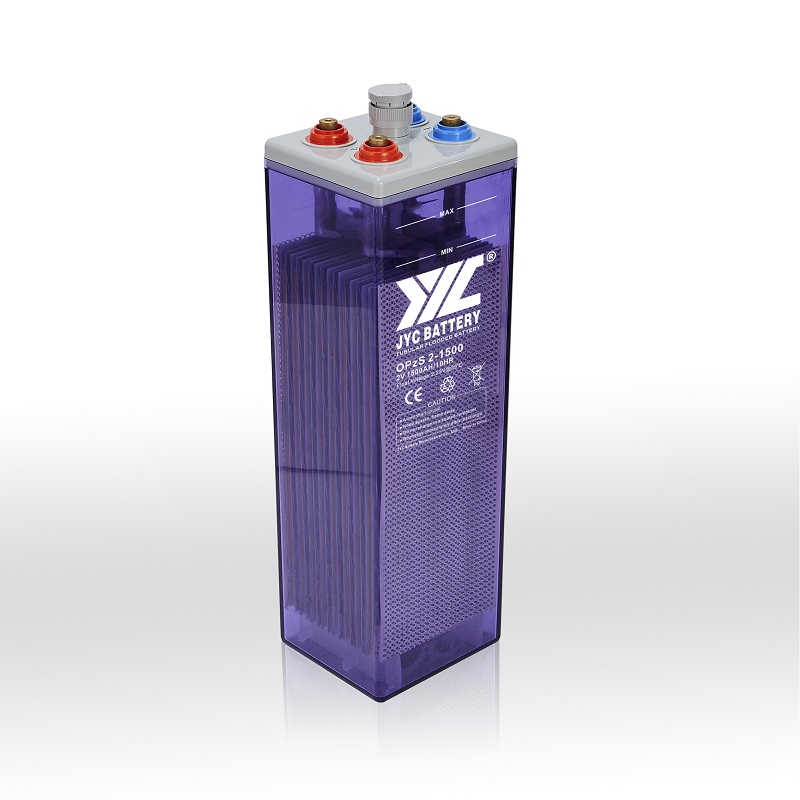

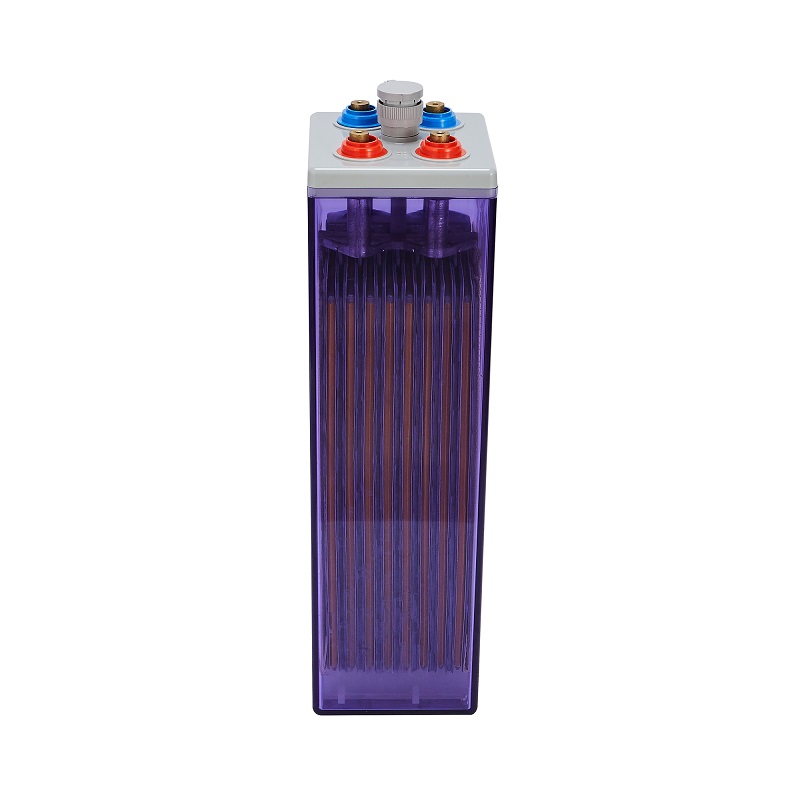

OPzS1500-2 2V1500AH
JYC OPzS battery is a traditonal tubular plates flooded stationary battery, with low maintenance, acid-proof and explosion-proof, its performance meets or exceeds the standards specified in DIN40736. This battery is most suitable for all standby power.
Description
Specification
Advantage
Application
Terminal type
Description
Description：
OPZS1500-2 is a traditional tubular plate flooded battery which offers 20+years design life according to the standard IEC60896-11.With a new designand technical improvement, it offers maximum efficiency and reliability for thewidest variety of applications. This series is highly suited for all standby powerapplications that require the highest levels and security of reliability
Specification
Specification:
| Model Number: | OPzS 2V1500AH | Length: | 275mm |
| Nominal voltage: | 2V | Width: | 210mm |
| Capacity@20HR(AH): | 1500Ah | Heigth: | 850mm |
| Weight: | Without electrolyte: 71 Kg(157 lbs) With electrolyte: 98 Kg (216 lbs) | Terminal Type: | Female Copper Insert M8 (torque:10~12N.m) |
Advantage
Advantage:
1.Suitable for deep / shallow cycle.
2.Low maintenance: Replenishment is 3 years
3.High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
4.ABS battery case made by LG raw material to increase battery service life.
5.Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
6.TTP technique not only reduce internal resistance and material cost but also increase battery life.
7.Conduct four large current discharge texting before package to insure battery quality.
8.Full charge before delivery. Buy and use it directly.
Application
Application：
Solar/wind power system,
Standby power
UPS system
Emergency lighting
Transportation
Telecommunication

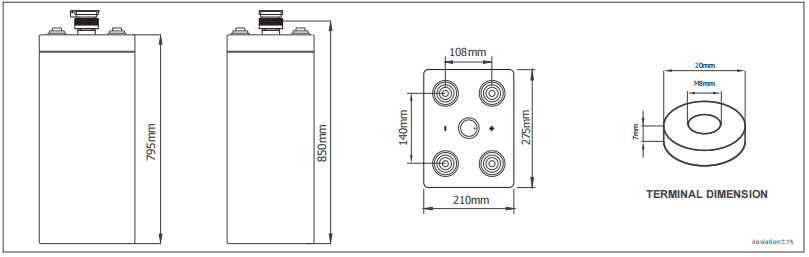

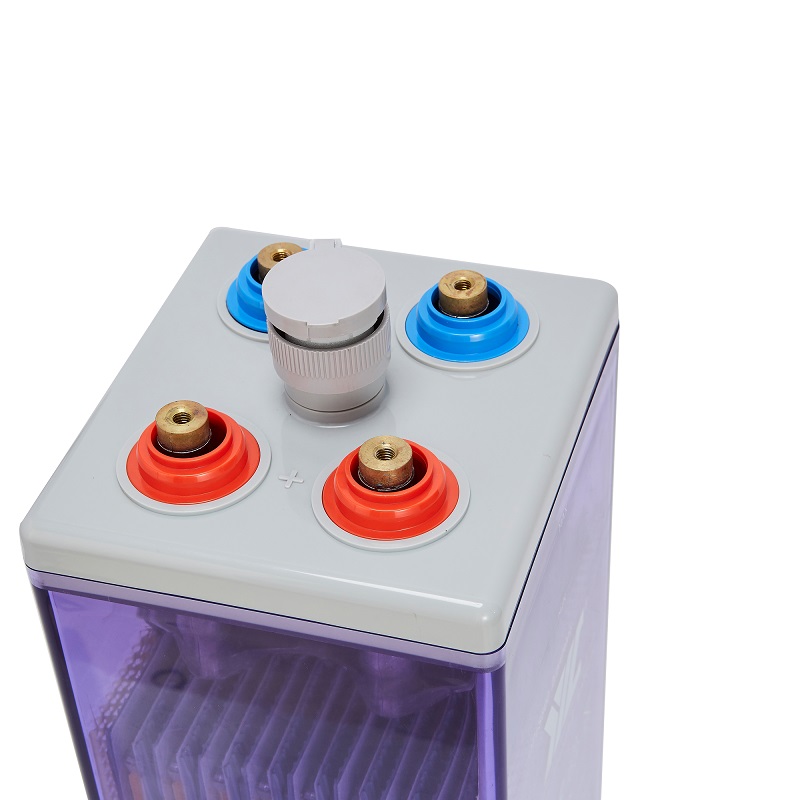

Terminal type
Terminal type:
