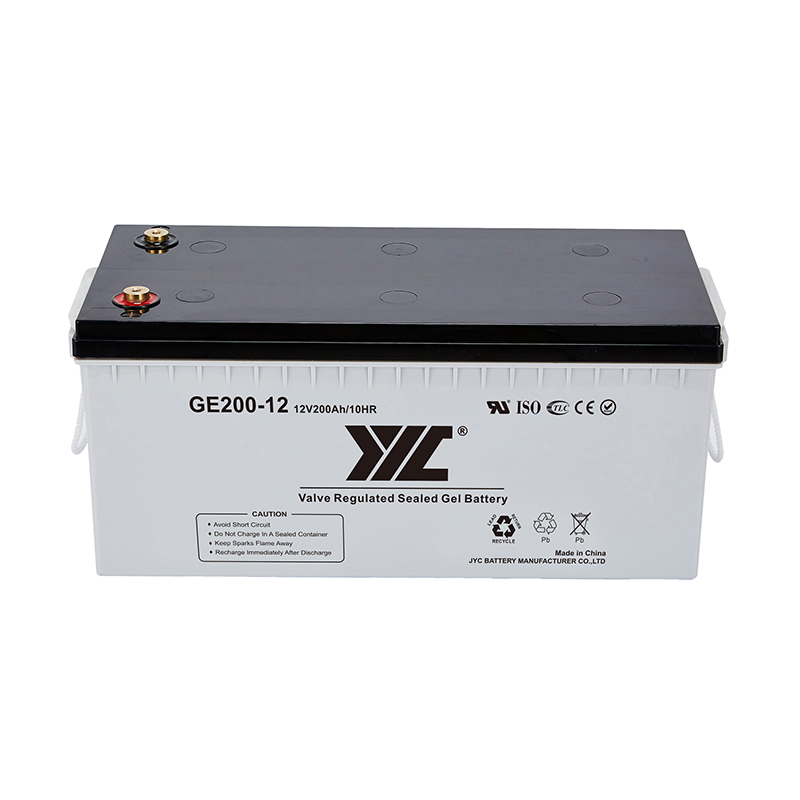

GEL200-12 12V200AH
Category GE Series-Gel Battery
JYC GEL series battery is mannufactured with special separators and silica gel immobilizing the electrolyte inside the battery. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.
Description
Specification
Advantage
Application
Terminal type
Description
Description:
GEL 12V200AH is capable of wide protected operation temperature ranges of -40℃ to 65℃ which is high cost-effective solutions for solar, wind power systems and other renewable energy systems. The battery can conquer harsh environment, long lasting high performance in high and low temperatures. 12V GEL battery is designed for 12 years life time floating design life at 25℃, 2V GEL battery is for 18 years. At minus 15℃ (minus 5 degrees F), the capacity also can up to 65%. GEL 12V 200AH Keep high cycle life at 25℃(77℉), 600 cycles at 80% DOD and 2300 cycles at 30% DOD. By using our revolutionary unique heat sealing and TTP welding technology, the battery has perfect performance in maintenance-free which can be used in outdoor and indoor environments without leaking or maintenance making it best in its class.
Specification
Specification:
Model Number: | GEL 12V200Ah | Length: | 522mm (20.55 inches) |
Nominal voltage: | 12V | Width: | 240mm (9.44 inches) |
Capacity@20HR(AH): | 200Ah | Heigth: | 221mm (8.70 inches) |
Weight: | 57kg(125.66lbs) ± 3% | Case: | ABS |
Advantage
Advantage:
1.50% longer cycle life than GP series.
2.High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
3.ABS battery case made by LG raw material to increase battery service life.
4.Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
5.TTP technique not only reduce internal resistance and material cost but also increase battery life.
6.Conduct four large current discharge texting before package to insure battery quality.
7.Full charge before delivery. Buy and use it directly.
Application
Application:
Solar/Wind power system
Transportation
UPS system
Oil and Gas
Telecom
Emergency lighting
Medical equipment, etc.

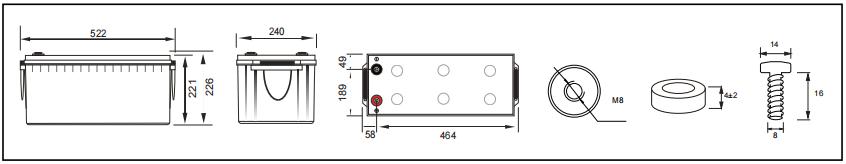

Terminal type
