FT100-12 12V100AH
FT series is specially designed for telecom use with 12 years design life in folat service. By adopting a new AGM separator and centralised venting system, the battery can be installed in any position while maintaining high reliability.
Description
Specification
Advantage
Application
Terminal type
Description
Description：
FT 12V100AH is a type of sealed lead-acid battery designed for use in telecommunications, UPS (Uninterruptible Power Supply), and other backup power applications. It have a longer life span and are more reliable than traditional lead-acid batteries. These batteries are designed to operate in a wide range of temperatures and can be used in both indoor and outdoor environments. They are also capable of withstanding high levels of shock and vibration, making them ideal for use in harsh operating conditions.
Specification
Specification:

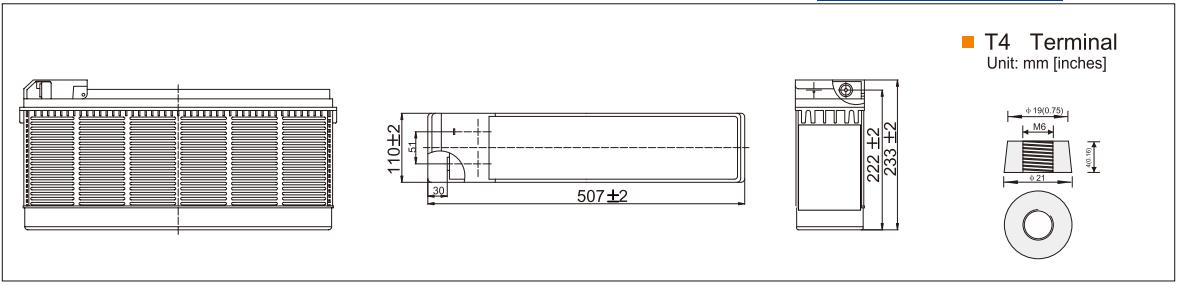

| Model Number: | FT 12V100AH | Length: | 507mm(19.9 inches) |
| Nominal voltage: | 12V | Width: | 110mm(4.33 inches) |
| Capacity@20HR(AH): | 100Ah | Heigth: | 222mm(8.74inches) |
| Weight: | 30kg(66.13lbs)3% | Case: | ABS |
Advantage
Advantage:
1.Battery can be installed in any position. Easy instalation and handling.
2.Design for telecom with more than 12years design life.
3.High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
4.ABS battery case made by LG raw material to increase battery service life.
5.Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
6.TTP technique not only reduce internal resistance and material cost but also increase battery life.
7.Conduct four large current discharge texting before package to insure battery quality.
8.Full charge before delivery. Buy and use it directly.
Application
Application：
Solar/Wind power system
Transportation
UPS system
Oil and Gas
Telecom
Emergency lighting
Medical equipment, etc.

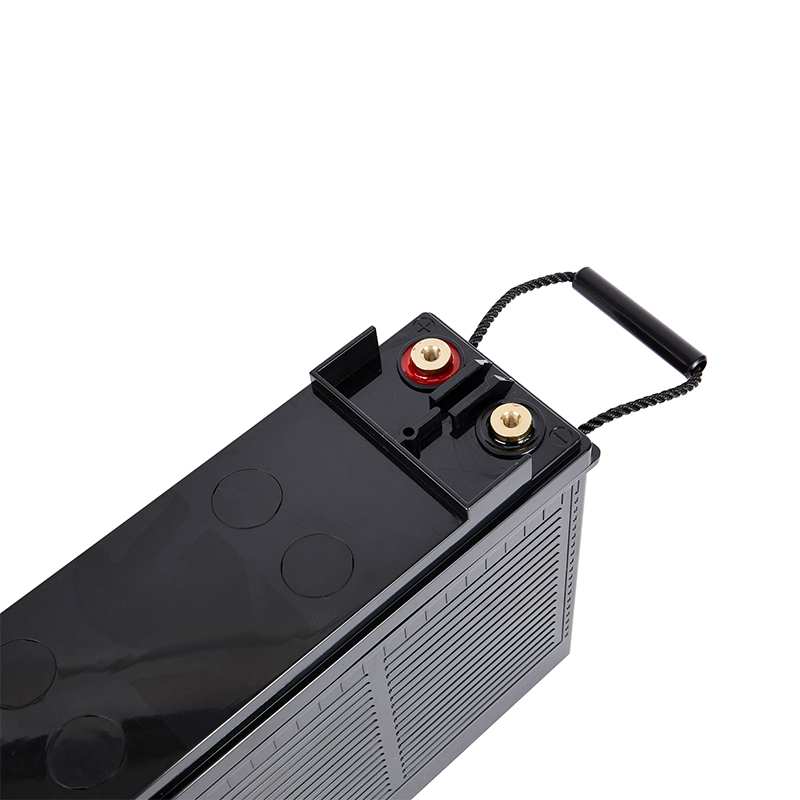

Terminal type
Terminal type:
