DC12-75 12V75AH
JYC DC series battery is specially designed for frequent cycling applications.The JYC batteries are used high-tin alloy positive plate, active paste materials and stronger electorlyte, which gives 30% more life than normaly battery.
Description
Specification
Advantage
Application
Terminal type
Description
Description:
DC 12V75AH is capable of 75AH, it has a smaller volume by comparing other same capacity DC battery. Also, different from normal battery, DC 12V75H improve 30% more life, the battery also can handle other cyclic applications such as remote micro-grids, power backup system, emergency system etc. With our revolutionary unique heat sealing and TTP welding technology, the battery has perfect performance in maintenance-free, after 12 months, its storage still can reach to 64%, which is high cost-effective solutions for solar, wind power systems and other renewable energy systems. The battery has wide protected operation temperature ranges of -20℃ ( -4℉) to 50℃ ( 122℉). And the deep cycle battery reduce the monthly self-discharge rate below 2% at 25℃ ( 77℉)
Specification
Specification:
Model Number: | DC-12V75Ah | Length: | 260mm (10.24 inches) |
Nominal voltage: | 12V | Width: | 169mm (6.55 inches) |
Capacity@20HR(AH): | 75Ah | Heigth: | 210mm (8.27 inches) |
Weight: | 20.5kg (42.1lbs)土 3% | Case: | ABS |
Advantage
Advantage:
- High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
- ABS battery case made by LG raw material to increase battery service life.
- Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
- TTP technique not only reduce internal resistance and material cost but also increase battery life.
- Conduct four large current discharge texting before package to insure battery quality.
- Full charge before delivery. Buy and use it directly.
Application
Application:
- Solar/Wind power system
- Transportation
- UPS system
- Oil and Gas
- Telecom
- Emergency lighting
- Medical equipment, etc.

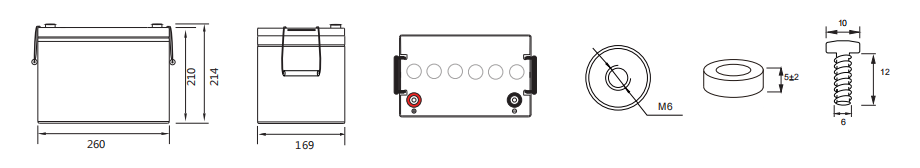

Terminal type
