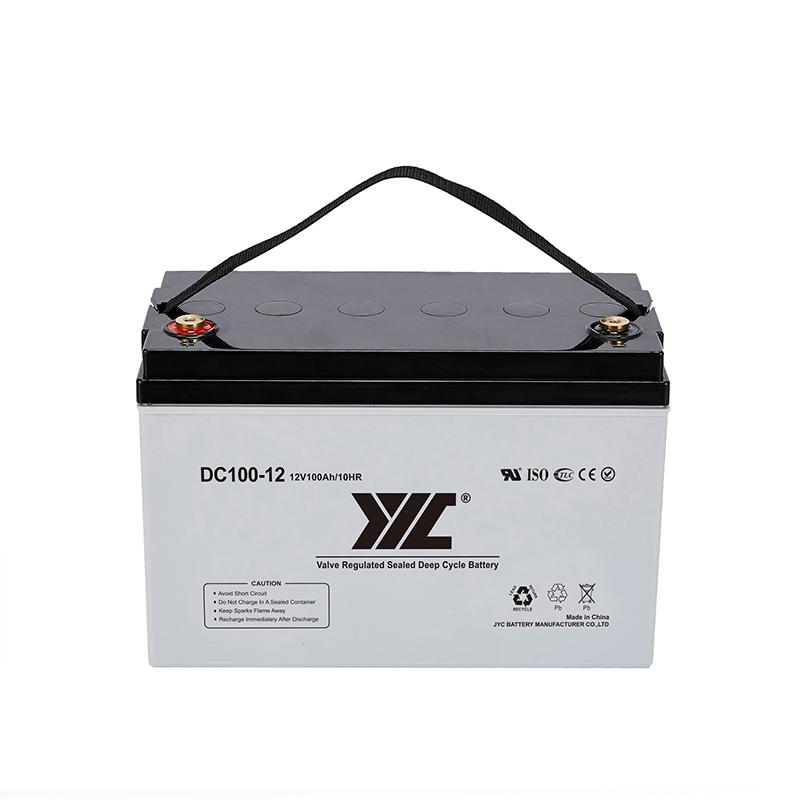

DC100-12 12V100AH
Category DC Series-Deep Cycle Battery
JYC DC series battery is specially designed for frequent cycling applications.The JYC batteries are used high-tin alloy positive plate, active paste materials and stronger electorlyte, which gives 30% more life than normaly battery.
Description
Specification
Advantage
Application
Terminal type
Description
Description:
DC 12V100AH is capable of 100AH, it has a smaller volume by comparing other same capacity DC battery. Also, different from normal battery, DC 12V100AH improve 30% more life, the battery also can handle other cyclic applications such as remote micro-grids, power backup system, emergency system etc. With our revolutionary unique heat sealing and TTP welding technology, the battery has perfect performance in maintenance-free, after 12 months, its storage still can reach to 64%, which is high cost-effective solutions for solar, wind power systems and other renewable energy systems. The battery has wide protected operation temperature ranges of -20℃ ( -4℉) to 50℃ ( 122℉). And the deep cycle battery reduce the monthly self-discharge rate below 2% at 25℃ ( 77℉)
Specification

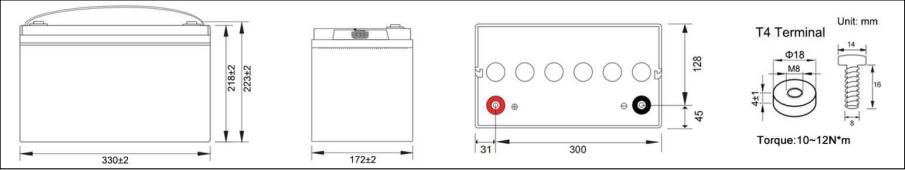

Specification:
Model Number: | DC 12V100AH | Length: | 330mm (12.99 inches) |
Nominal voltage: | 12V | Width: | 172mm (6.77 inches) |
Capacity@20HR(AH): | 100Ah | Heigth: | 218mm (8.58 inches) |
Weight: | 28.2kg (62.17lbs) 土 3% | Case: | ABS |
Advantage
Advantage:
1.High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
2.ABS battery case made by LG raw material to increase battery service life.
3.Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
4.TTP technique not only reduce internal resistance and material cost but also increase battery life.
5.Conduct four large current discharge texting before package to insure battery quality.
6.Full charge before delivery. Buy and use it directly.
Application
Application:
Solar/Wind power system
Transportation
UPS system
Oil and Gas
Telecom
Emergency lighting
Medical equipment, etc.
Terminal type
